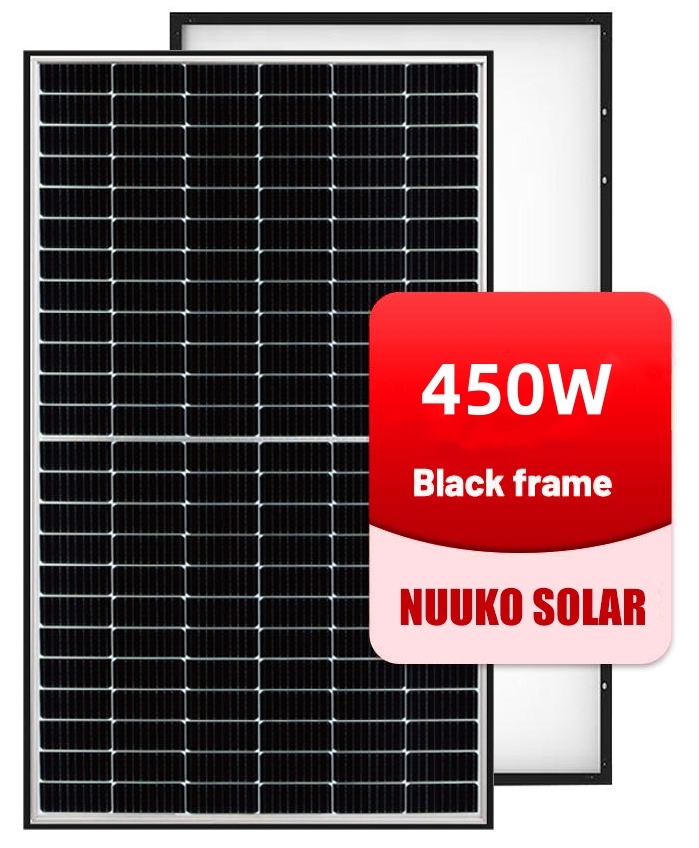

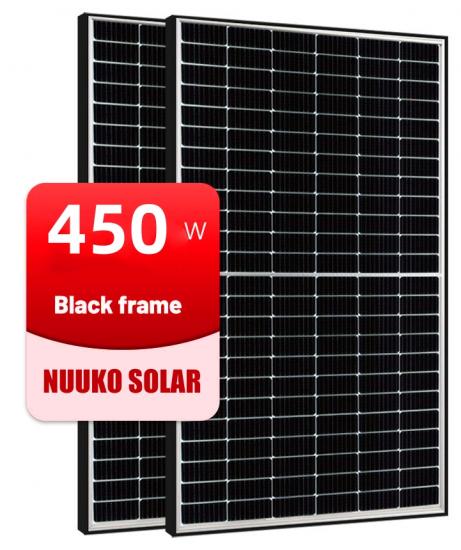

STAR SERIES 166 PERC Half Cell Solar Panel
NUUKO focuses on value creation and in the winter of 2020 launches a new generation of high efficiency PV modules,the STAR series-166mm M6 Solar Panels. The new series integrates 166mm large-size silicon wafers with PERC, multi-busbar, half-cell technologies and high-density encapsulation. Technology integration enables the SPIRIT series to increase the efficiency of the module up to 20.9%, and a maximum power to 455W.
|
|
NUUKO focuses on value creation and in the winter of 2020 launches a new generation of high efficiency PV modules,the STAR series-166mm M6 Solar Panels. The new series integrates 166mm large-size silicon wafers with PERC, multi-busbar, half-cell technologies and high-density encapsulation. Technology integration enables the SPIRIT series to increase the efficiency of the module up to 20.9%, and a maximum power to 455W. |
IMPROVED RELIABILITY
Compared with larger module products, the STAR series has a number of outstanding characteristics, such as a lower working current and power loss, a lower temperature coefficient, high low irradiance performance, high power output and low hot spot effects.Moreover, it provides for two installation methods according to field conditions: by rails and clamps. In both cases, the STAR series modules are qualified for 5400Pa static load on the front side even when there is no cross-beam support on the back.
|
1.Half Cell Technology The half-cut cell design can decrease the power loss by the shadow effectively. The optimized circuit design not only realizes the maximum power output but also assures the reliability of solarpanels.
NUUKO 166mm Solar Panel adopts multi-busbar technology. More busbars of the cell decrease the current transverse propagation path by 50%, effectively reduce the internal loss, and improve power of solar panels. |
 |
Advantages
 |
10%-30% Additional Power Generation▲ 30 years lifespan brings 10-30% additional power generation comparing with conventional P-type module
|
 |
 |
Outstanding Low Light Performance▲ Higher power output even under low-light environments like on cloudy or foggy days.
|
|||||
 |
PID Resistance▲ Excellent Anti-PID performance guarantee via optimized mass-production process and materials control
|
 |
Enhanced Mechanical Load▲ Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal)
|
||||||
 |
Better Temperature Coefficient▲ Higher power generation under working conditions, thanks to passivating contact cell technology |
 |
Wider Applicability▲ More application scenes like BIPV, vertical installation, snowfield, high-humid, windy and dusty area |
||||||
 |
Zero LID (Light Induced Degradation)▲ N-type solar cell has no LID naturally which can increase power generation |
 |
Lower LCOE▲ Higher bifaciality, higher power output and lower BOS cost |
||||||
|
APPLICABLE TO PROJECT SCENARIOS |
||
|
|
|
|
